Evolving paper cutting machine
Support for small size up to wide size
TopPageProducts≫ paper feeding/discharging unit
Products

Paper feeding/discharging unit

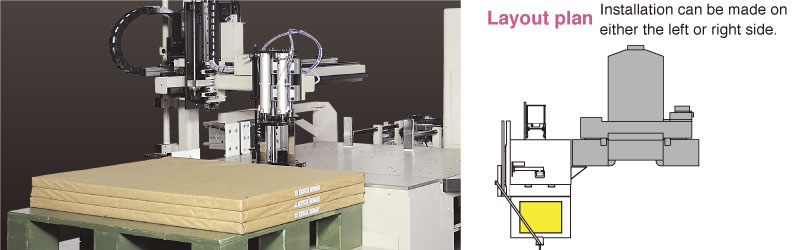

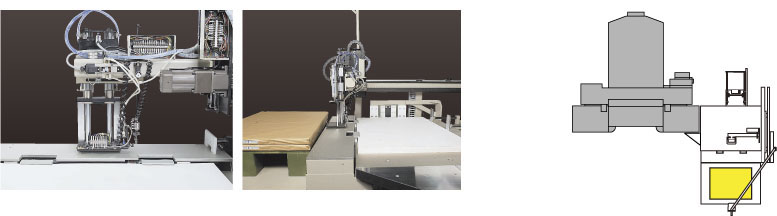

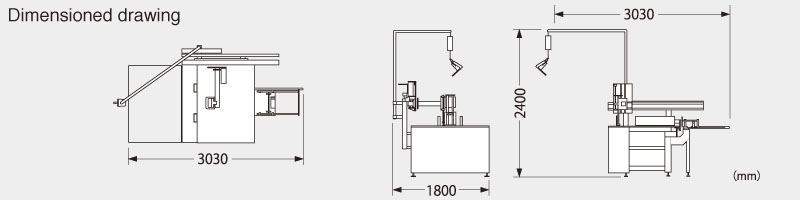

Front loading type
Layout for easier operator movement.
The paper can be handled together with the pallet.
Paper can be fed while the wrapping paper is peeled off, reducing the setting time.

RFL1.4 Applicable paper cutting machines
eRC-115DX eRC-137DX eRC-160DX eRC-170DX
RFL1.4 Specifications
Max. paper size 900 x 1300 mm
Max. paper height 165 mm
Min. paper height 30 mm
Table height 850 - 950 mm
Table lifter 930 x 1350 mm
Table size 1400 x 1000 mm
Weight 1300 kg
Total electric capacity 5.0 kw

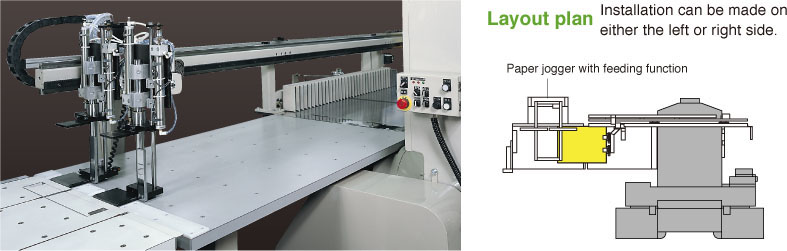

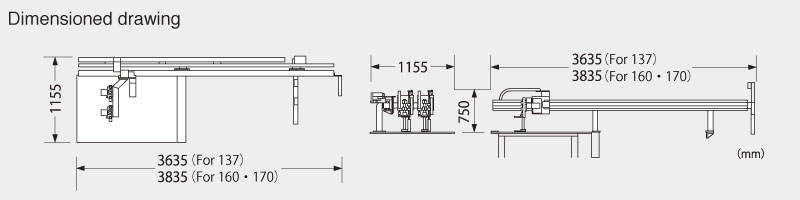

Rear loading type
You can work in a group of two persons to eliminate the time lag between
paper sorting and cutting.

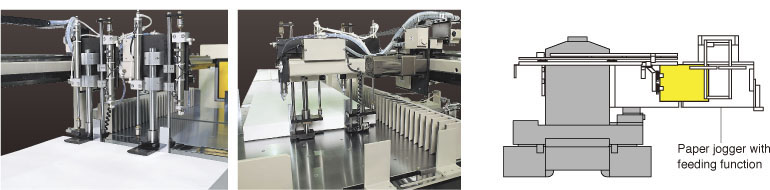

With a gripper for avoiding paper deviation and a paper jogger,
paper transfer work becomes unnecessary.


RSL1.2 Applicable paper cutting machines
eRC-115DX eRC-137DX eRC-160DX eRC-170DX eRC-200DX eRC-250DX
RSL1.2 Specifications
Max. paper size 900 x 1300 mm
Max. paper height 165 mm
Min. paper height 30 mm
Table height 850 - 950 mm
1 cycle 30 sec.
Table size 1500 x 1000 mm
Weight 480 kg
Total electric capacity 1.0 kw

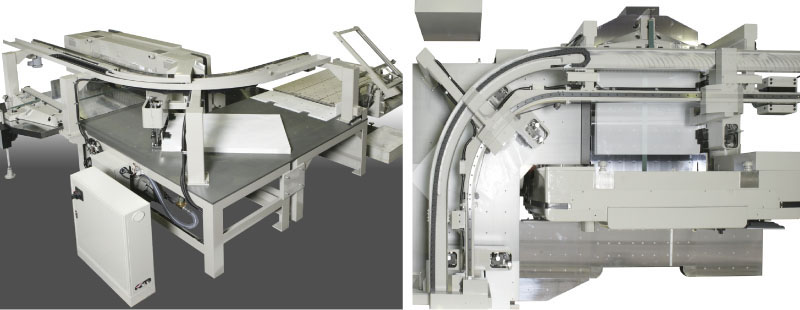

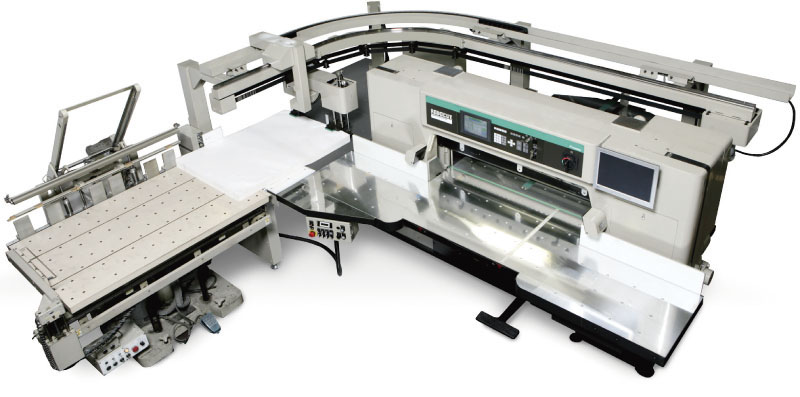

Front loading, rear discharge type
Moving line with minimum time loss from paper feeding to cutting.
One-person operation can be made.
L-shaped layout making the most of the space.
The paper size capacity is the same as that of the paper cutting machine.

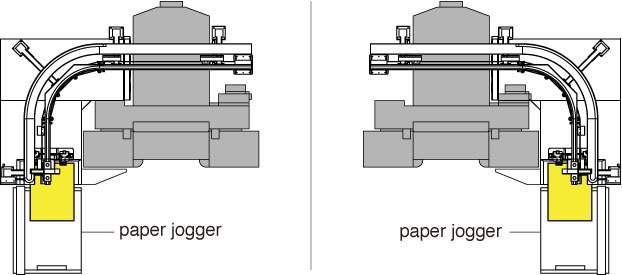

Layout plan
Installation can be made on either the left or right side.

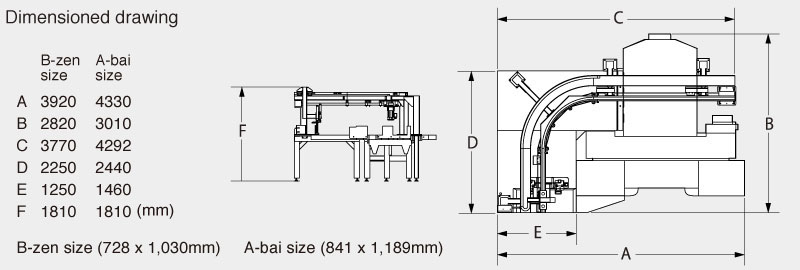

Side loading system model 3.1
RSL3.1 Applicable paper cutting machines
eRC-115DX eRC-137DX eRC-160DX
RSL3.1 Specifications
Max. paper size (For 115)800 x 1100 mm / (For 137)900 x 1300mm
Max. paper height 165 mm
Min. paper height 30 mm
Paper feeding time 14 sec.
1 cycle 32 sec.
Weight 1800 kg
Total electric capacity 1.0 kw (incl. 0.4 kw for compressor)

Front/Side paper discharge type
Arbitrary unloading direction.
Paper deviation is avoided with a gripper unit.
Rear surface finished in a flat face. An LCD is installed.

Unloader 4.0
Rear paper discharge type
Arbitrary unloading direction.
Paper deviation is avoided with a gripper unit.
Rear surface finished in a flat face. An LCD is installed.
RU4.0 / RU4.1 Applicable paper cutting machines
eRC-115DX eRC-137DX eRC-160DX eRC-170DX eRC-200DX eRC-250DX
RU4.0 / 4.1 Specifications RU4.0 / 4.1 Specifications
Max. paper size B-zen size = 800 x 1100 mm
A-bai size(4.0 only) = 900 x 1300 mm
Min. paper size 400 x 600 mm
Max. paper height 165 mm
Min. paper height 30 mm
Max. stacking height 1400 mm
Pallet height 130 mm or over
Alternating stacking function optional
Weight B-zen size = 1500 kg
A-bai size(4.0 only) = 1550 kg
Total electric capacity 3.0 kw

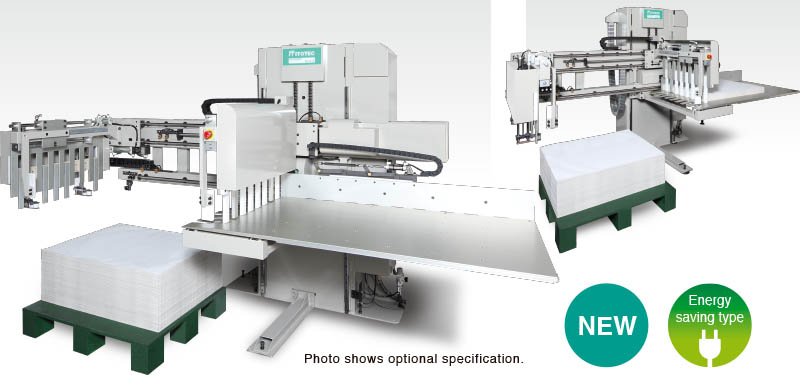

Front paper discharge type
Save labor through space saving!

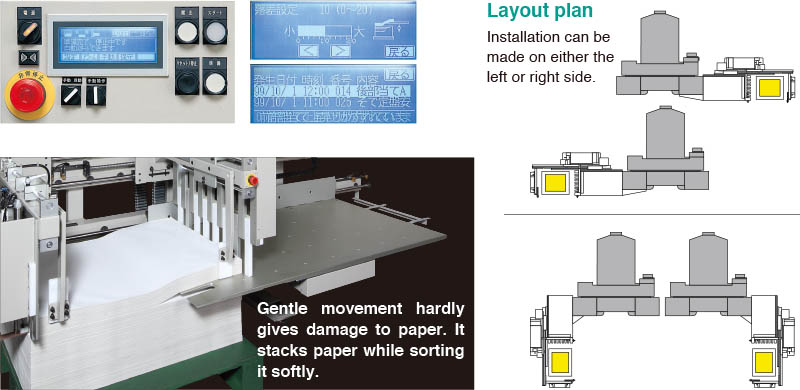

The table moves gently to avoid paper deviation
LCD installed
Energy saving type

Easy-to-operate touch panel LCD

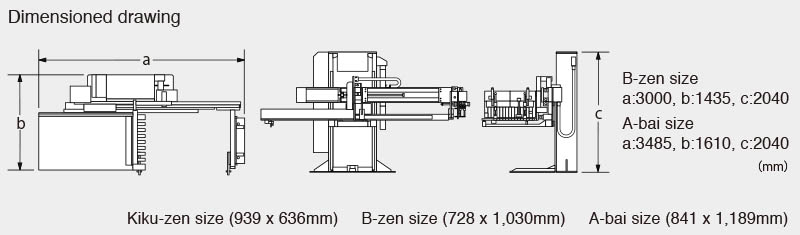

RU5.0 Applicable paper cutting machines
eRC-115DX eRC-137DX eRC-160DX eRC-170DX eRC-200DX eRC-250DX
RU5.0 Specifications
Max. paper size B-zen size = 790 x 1100 mm
A-bai size = 900 x 1300 mm
Max. paper height 165 mm
Min. paper height 30 mm
Max. stacking height 1400 mm
Pallet height 130 mm or over
Alternating stacking function optional
Weight B-zen size = 2000 kg
A-bai size = 2200 kg
Total electric capacity 2.6 kw
